Description

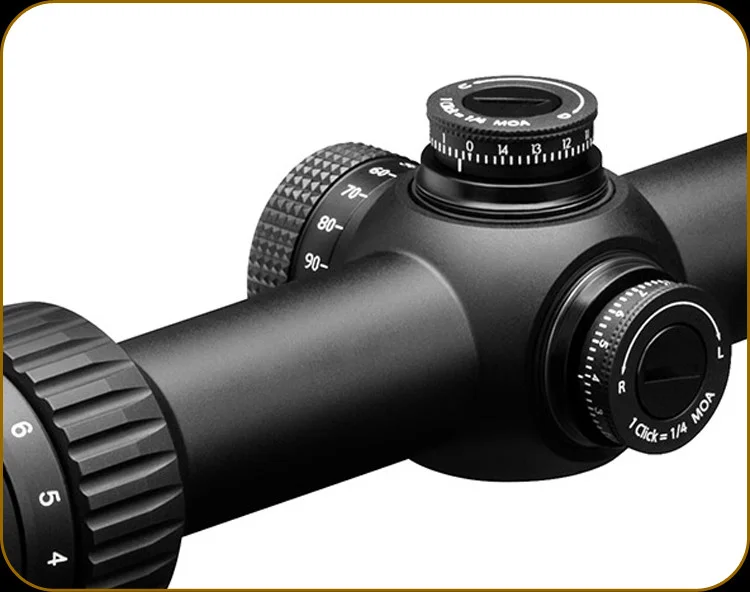

Vortex Optics re-engineered their extremely popular Diamondback scope series to produce the Diamondback HP (High Performance) scope line to give hunters and shooter a great, high quality scope to top their favorite rifle.The Diamondback HP offers extremely clear, extra-low dispersion glass with XR multi-coated lenses to allow hunters to squeeze out every bit of shooting light from the day to bag their trophy.With a 4x zoom and side parallax adjustment, thisrifle scope keeps a trim profile andgives you all of thefeatures you need to be successful.With the option of the standard V-Plex or Vortex’s Dead-Hold BDC reticle, the Diamondback HP is the perfect choice for your hunting rifle.Backed by the Vortex VIP Lifetime Warranty.
| Finish | Matte Black |
| Waterproof | Yes |
| Weight | 18 Ounce |
| Tube Diameter | 1″ |
| Power Variability | Variable |
| Minimum Power | 4 |
| Maximum Power | 16 |
| Adjustment Click Value | 1/4 MOA |
| Adjustment Type | Click |
| Exposed Turrets | No |
| Finger Adjustable Turrets | Yes |
| Turrets Resettable to Zero | Yes |
| Zero Stop | No |
| Turret Height | Medium |
| Fast Focus Eye Piece | Yes |
| Lens Coating | XR Fully Multi-Coated |
| Warranty | Vortex VIP Lifetime Warranty |
| Rings Included | No |
| Sun Shade Included | Yes |
| Lens Covers Included | Yes |
| Reticle | Dead-Hold BDC |
| Reticle Construction | Wire |
| Illuminated Reticle | No |
| Holdover Reticle | Yes |
| Reticle Focal Plane Location | 2nd |
| Parallax Adjustment | 30 Yards-Infinity |
| Fog Proof | Yes |
| Shock Proof | Yes |
| Overall Length (A) | 12.5 Inches |
| Eyepiece Bell to Objective Bell Length (B) | 5.2 Inches |
| Objective Bell to Turret Length (C) | 1.9 Inches |
| Eyepiece Bell to Turret Length (D) | 1.9 Inches |
| Eyepiece Length (E) | 3.6 Inches |
| Objective Bell Length (F) | 3.7 Inches |
| Objective Diameter (G) | 2 Inches |
| Eyepiece Diameter (H) | 1.69 Inches |
| Objective Lens Diameter | 42 Millimeter |
| Eye Relief | 4 Inches |
| Field of View @ 100 Yards Minimum Power | 23.8 Feet |
| Field of View @ 100 Yards Maximum Power | 6.1 Feet |
| Maximum Windage Adjustment | 80 MOA |
| Maximum Elevation Adjustment | 80 MOA |
| Sun Shade Length | 4 Inches |
