Description

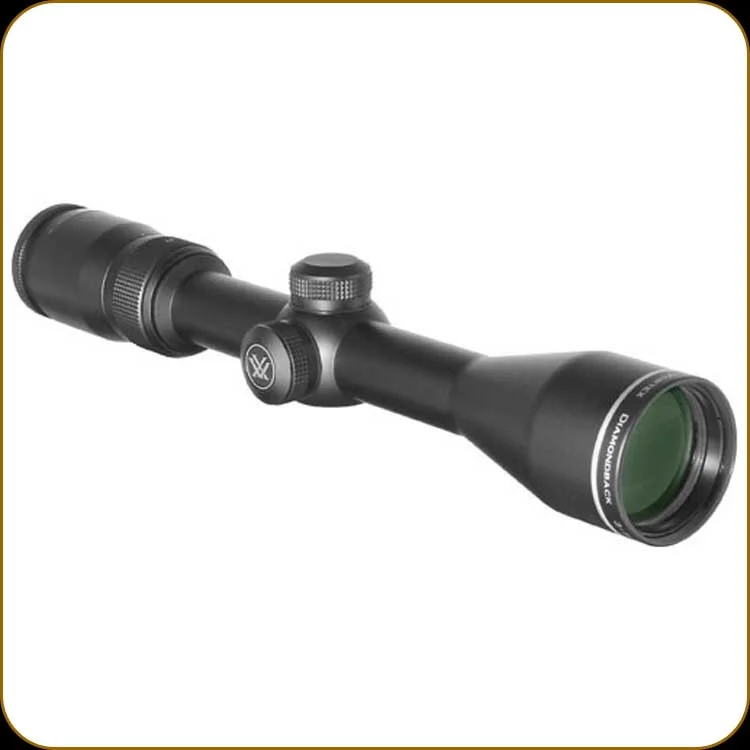

The Vortex3-9×40 Diamondback Riflescopeis built to endure, perform, and excel. Its one-piece center-tube design is carefully constructed from 6061-T6 aluminum, and fitted with a precision adjustment system that allows for a generous amount of correction. The optical system is fully multicoated for a fine line of sight, and the entire assembly is then purged with argon gas for flawless all-weather performance.

The variable mid-range magnification of a 3-9×40 scope is extremely flexible; the balance of power against the efficient 40mm objective offers hunters excellent twilight performance with a comfortable sight picture in open fields and dense woods.

Parallax correction is factory preset at 100 yd

Fast focus eyepiece for rapid target acquisition

XR multi-layer coatings deliver edge-to-edge clarity

1.0″ One-piece 6061-T6 aluminum main tube construction

Low-profile turrets with 1/4 MOA audible tactile clicks

Windage/90 MOA – Elevation/84 MOA

Magnification	3 to 9x
Objective Lens Diameter	40mm
Field of View	3x:44.6′ @ 100 yd / 14.8m @ 100 m 9x:14.8′ @ 100 yd / 4.9m @ 100 m
Exit Pupil Diameter	3x:13.3mm 9x:4.4mm
Eye Relief	3.3 to 3.5″ / 84 to 89mm
Diopter Correction	-3.0 to +2.0

Impact Point Correction	1/4MOA per Click
Windage Adjustment	90MOA
Elevation Adjustment	84MOA

Water Resistance	Waterproof
Fogproof	Yes

Maintube Diameter	1″
Battery	None
Dimensions	Length: 11.7″ / 297mm
Weight	14.4oz / 408g
