Description

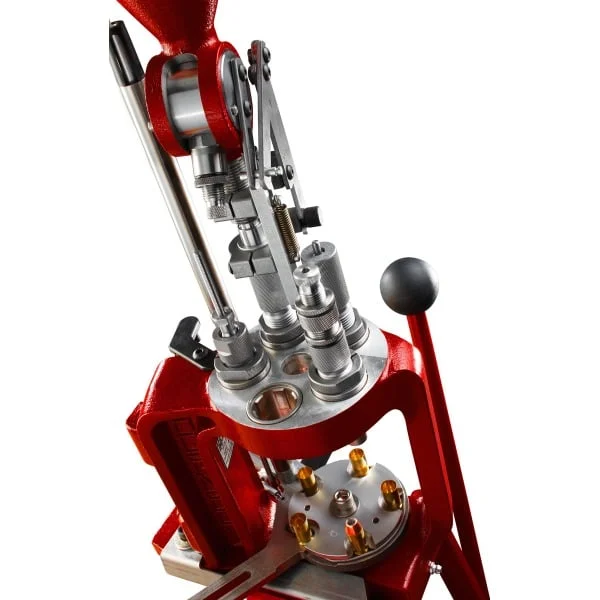

Hornady’s Lock-N-Load AP is an automatic, five-station press with the most user-adaptable and innovative patented quick tool change technology of all progressive presses. Our system switches dies, powder dies, check dies, bullet seaters or crimp dies without having to change the whole die head. Change one die or all with one quick twist. The Lock-N-Load AP comes complete with a full-size Lock-N-Load Powder Measure that will load anything from pistols up through most magnum rifle cartridges. The Lock-N-Load AP also includes a case activated powder drop, cartridge catcher and extra bushings. Also features case activated powder drop and automatic indexing. Dies and shellplates sold separately.

LOCK-N-LOAD POWDER MEASURE

The only system that uses a full size powder measure that can be reset to another charge or powder with the push of a button. The unique inserts can be preset to the charge you use with the caliber you are loading. The most flexible (and economical) powder system available for progressive presses.

PRIMING SYSTEM

The primer slide in the shell carrier receives a primer at the top of the stroke and inserts in the case at the bottom of the stroke. The slide stays in perfect alignment, and is easily changed from large to small. Use the included primer pick-up tubes (large and small) to fill the primer tube.

LOCK-N-LOAD BUSHING SYSTEM

Switch dies from one caliber to another or change out die stations and begin reloading again in seconds. Once set, dies never needs readjusting. Bushing locks standard 7/8″-14 dies rock-solid in perfect alignment.

CASE ACTIVATED POWDER DROP

Get a charge of powder only when a cartridge is in place. Works with any cartridge, pistol to magnum rifle. Can be manually operated to check powder charge. Install the optional Lock-N-Load powder die for the fastest changeover of all progressive presses. Also fits RCBS measurer.

FIVE-STATION DIE PLATFORM

Five stations allow for all the variables and still let you use your standard dies most 7/8″-14 dies and 7/8″-14 powder measures will work.

UNIVERSAL EJECTOR

Cases are automatically ejected into the included case catcher.

AUTOMATIC INDEXING

This very important feature automatically advances shells to the next station with the smoothest indexing of any press in this price range, and rotates every half stroke to lessen the chance of powder spillage.

CASE RETAINER

Quickly and easily remove and/or replace a case from the shell plate at any point in the cycle without extra retaining buttons. Case retainer fits all calibers.

LARGE CARTRIDGE CATCHER

A large capacity catcher comes standard with the L-N-L AP Press. An extra large capacity catcher which holds up to 1/3 more completed cartridges is available as an option.

*Note: Shell plates have been re-designed for case ejection. Hornady added a chamfer that allows cases to move easily in and out of the shell plate.
