Description

80102 mounts manufactured after 3/2021 are drilled to accommodate larger diameter screws (#8-40) and now come with #6-48 and #8-40 screws. The head diameter on the #6-48 screws provided with this mount is larger than our normal #6-48 screws.

If you have questions about your specific firearm, or need help regarding the specific screw size, you should contact Remington Customer Support at1-800-243-9700 and supply them with your serial number.

The blue bag of screws provided are #6-48 screws.

The red bag of screws provided are #8-40 screws.

Mounting Hardware is Included

This mount fits:

Bergara B14 Long Action (#6 Screws)

Bergara Premier Long Action (#8 Screws)

Remington 700 Long Action

Remington 700 Long Action (#8 Screws)

Remington 700 Long Action Police Tactical (#8 Screws)

Remington 721 Long Action

Remington 725 Long Action

Christensen Arms Long Action

Mauser M18 (All Calibers)

Sauer 100 (All Calibers)

Sauer 101(AllCalibers)

Rail Type:One Piece Picatinny

Machined From:Solid 7075 T6 Aircraft Grade Aluminum

Finish:Matte Black Hardcoat

Center Spread:4.485″

Overall Length of Mount:7.064″

Height:.35″ (Top of Receiver to Top of Picatinny)

Weight:2.5 oz

Quick Disconnect Ring Compatible:Yes

Ambidextrous:Yes

Compatible with Picatinny or Weaver scope rings.

Torque Specs:20 in/lbs

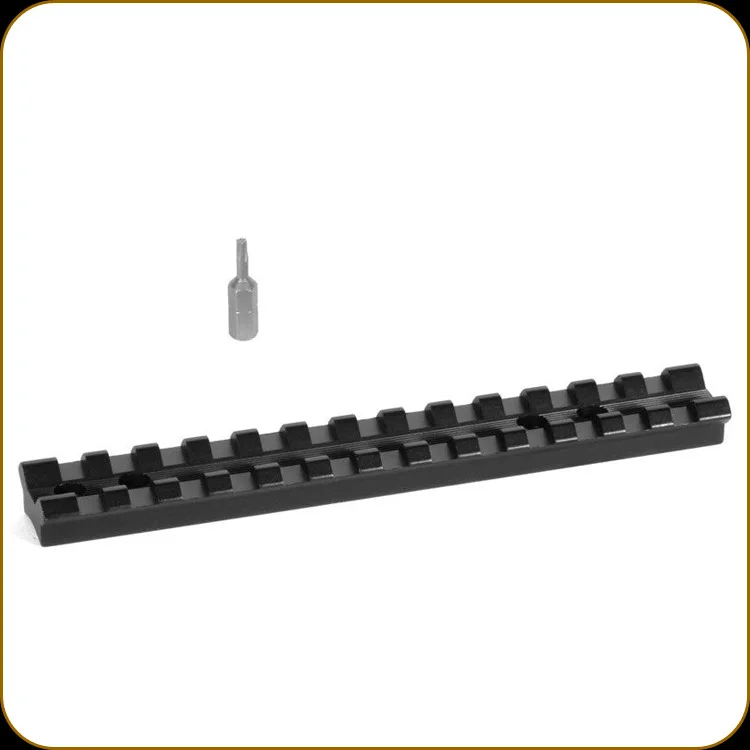

Mounting Hardware (Included):

#6-48 X 1/4″ Screws

#8-40 X 1/4″ Screws

T-10 Bit

The Bergara Premier and certain Remington 700 models (ie. 700 Police) require the base to be drilled out for #8 screws. Our Remington 700 mounts that are predrilled are only available in our Heavy Duty platform and are available below. If you would like to drill the mount yourself, we do offer a #8 Drill Out Kit which comes with the appropriate drill bit and screws.

Remington Long Action Mounts Drilled for #8 Screws:

0 MOA

20 MOA

30 MOA

40 MOA

This mount comes standard with a bevel on both sides making it ambidextrous.

The bolt pattern on our Remington 700 Long Action mount fits Long Action Remington 700 rifles (example 30-06, 300 Win mag), as well as the 740 and 40x. Despite what you may have heard, the Remington 700 mount will NOT fit your Howa 1500 or Weatherby Vanguard. The bolt pattern is similar, but the remainder of the mount (ejection port, length, etc.) renders it useless on these two guns.

We recommend measuring the hole spacing in your receiver to confirm it matches with the dimensions we have published.

Picatinny cross slots run the full length of the rail, which gives the shooter flexibility when mounting scope rings and other accessories. The channel in the center reduces the overall mass of the mount. Also, in many cases, it will not obstruct usage of factory iron sights. Our one-piece scope mounts are the obvious choice for hunters and tactical shooters alike.

We machine these in our shop using one of our machining centers. After machining, the mounts are tumbled, sand blasted, and Type III anodized for long lasting durability.

We recommend:

0 MOA -if shooting 0-500 yards

20 MOA -if shooting 500-1000 yards

30 MOA- if shooting 1000-1500 yards

40 MOA- if shooting 1500+ yards

When zeroing your rifle with a 20 MOA mount, we recommend zeroing at 200 yards.

Installation: We recommend 20 inch lbs of torque and a drip of blue loctite
